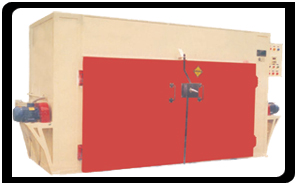

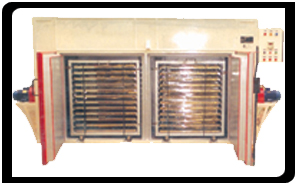

Tray Dryers

Bulletin

Hardworking Ovens designed for baking, drying, preheating in Chemical, Food, Dyestuff, Pharmaceutical or any other applications where a dependable sources of heated air to 2600C is required. Complete with temp. controllers that offers the latest in solid state heat sensing technology and built in floor level tracks that make trolley loading easy.

Horizontal airflow accommodates virtually any dryer Loading without restricting air passages. Work can be shelf loaded or placed directly on the optional reinforced work space bottom. Five sizes Side mounted control panel minimizes floor space required. Designed for Roasting, Drying, Pre-Heating or any other application where a dependable source of heated air up to 300 degree.

STANDARD FEATURES

  • Thermostatic controller
  • Motor control push buttons
  • On - off heater switch
  • Easy to see pilot lights

SAFETY EQUIPMENT

  • Adjustable, thermocouple actuated, manual reset Excess temperature controller
  • Separate heating elements control contactors
  • Re-circulating blower air flow safety switch
  • Interlock Heaters & Blower

CONSTRUCTION

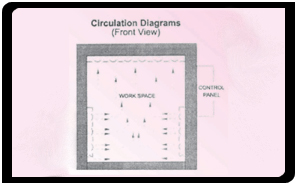

  • Front to bottom horizontal air flow
  • G.I. or M.S. interior
  • M.S. exterior with powder coated or painted
  • All welded construction
  • Explosion venting latches
  • 2.5 kg per cu.feet. density Rock wool Insulation
  • Silicon rubber door gasket on up to 300 degree
  • Adjustable fresh air & exhaust dampers
  • High pressure re-circulating blower
  • Door hinges, ball catch, Handle
  • 1 year limited warranty

Every oven fully assembled and individually factory tested

Specifications

No.of

Size (0)

Size (I)

Heating Load Kw

No. of

No. of

No. of

No. of

Tray

WxDxH

WxDxH

1000C

2000C

3000C

Door

Fans

Motors

Trolley

12

54x21x37"

33x12x33"

3

6

9

1

1

1x0.25

-

24

54x37x37"

33x34x33"

6

9

12

1

2

1x0.5

-

48

78x40x74"

40x36x72"

9

15

21

1

1

1x1.00

1

96

131x40x74"

77x36x72"

15

21

27

2

2

1x1.0

2

192

131x75x74"

77x69x72"

36

42

48

2

4

2x2.0

4

TRUCK WHEEL GUIDE TRACKS :

  • Allows loading at factory floor level
  • Choice of track width and centres
  • Structural steel angle iron construction
  • Integrally welded to steel base plate
  • Flared entrance for easy loading
  • Available with insulated floor

INSULATED FLOOR

  • Minimizes heat loss through oven floor
  • Improves temperature uniformity at bottom of workspace
  • High density insulation
  • Structural steel angle iron reinforcement
  • Integrally welded construction
  • Steel plate cover
  • Available with truck wheel guide tracks
ADDITIONAL EQUIPMENT & CUSTOM BUILT DRYERS AVAILABLE.
