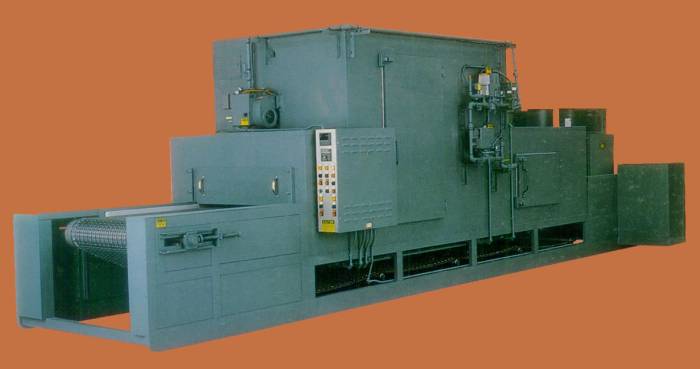

Conveyor Ovens

BulletinCO-600


HEAVY DUTY
CUSTOM DESIGNED
CONVEYOR OVENS

Operation

Conveyor drying uses a perforated belt to transfer feed materials through the dryer. Heated air is either passed under and through, or over and through the belt and product bed before being reheated and re-circulated. Units are normally multi zoned and may have differing airflow's in successive zones. Additionally each zone may use a different temperature profile and control. Saturated or close to saturated air is exhausted from the dryer via a central exhaust duct.

Conveyor dryers may be multi pass units, in which the feed is transferred from one belt to another belt below it by gravity. These dryers are usually two or three pass machines. Additionally certain conveyor dryers, such as those used in vegetable dehydration have multiple belts in line, and the feed is transferred from one belt to another.

SAKAV's experience in the design and manufacture of conveyor ovens has resulted in a wide range of units. Electric gas and steam heated units with operating temperatures from 650C to 6500C, have been created for all fields of industry.

Each unit is specifically designed for the customer's process and can include:

  • Multiple heat zones
  • Extended loading and unloading zones
  • Special belt construction or attachments
  • Cooling zone to reduce part temperature

Our experienced engineers will work closely with you to develop a conveyor oven to meet your particular requirements. Every unit is completely assembled and tested. You are invited to witness test and run sample parts at our factory prior to shipment.

STANDARD FEATURES

  • Aluminized or stainless steel interior depending on maximum temperature rating.
  • 16 gauge aluminized steel exterior with enamel finish
  • Welded structural steel, channel base provides a rigid assembly easily moved at any time.
  • Heavy duty, all welded, structural steel slide bed is supported by cross angles welded to vertical structural members to transfer load to base
  • Belt slide bed herringbone construction provides for even belt wear.
  • Side hinged doors provided along oven length for access to work space and heat chamber.
  • Heavy duty variable speed belt drive with torque limiting device
  • Belt tracked and guided as necessary with rollers to prevent wandering and potential belt damage
  • Adjustable dampers at each end of heat zone can be positioned near load to minimize heat loss from end of oven.
  • Adjustable patented opposed louvers on full coverage supply and return ductwork.
  • Duct work removable for cleaning
  • Brushed stainless steel control panel face
  • 1 year limited warranty

SIZING OF CONVEYOR OVEN LENGTH

To determine if a belt conveyor oven is practical for your application, estimate the heated tunnel length. Belt conveyor equipment is sized to the application based on part dimensions, production rate and dwell time.
Belt width is selected to accommodate the desired loading pattern, such as in line, side by side or four abreast. The loading density, parts per lineal foot, and production rate determine the design belt speed. The design heat zone length is the product of belt speed and dwell time.

It is important to understand the relationship between belt width, production rate and heat zone length. Doubling the belt width will double the production rate, or allow the heat zone to be half as long.

To estimate the length of belt conveyor equipment required for your application, insert your process information in the relationships below. To the heat zone length calculated, the length of load zone and unload zone must be added. Approximately 2 additional feet of length will be required for belt guarding and drive.

Equipment width will be approximately 3 feet wider than belt width to accommodate insulation, duct work and control enclosure.

To receive a detailed quotation for your application complete the "Request for Quotation Data Sheet" found on the reverse side of our catalog index.

(Production rate of.........parts per hour) = (Belt speed of.........feet per hour)
(Loading density of.........parts per lineal foot)

(Belt speed of.........feet per hour) X (Dwell time of.........hour) = (Heat zone length of.........feet)

Technical Specifications

Model No.

Weight

Burner Capacity

Electric Power

SD 300

3000 Kgs

500,000 Btu/hr (146 kW)

3 Phase, 15 amps

SD 500

3250 Kgs

500,000 Btu/hr (146 KW)

3 Phase, 15 amps

SD 800

3500 Kgs

750,000 Btu/hr (220 KW)

3 Phase, 15 amps

Model No.

A

B

C

Nominal Capacity

Effective Area

SD 300

6070

900

1420

300 Kg/ Hr

11.5 M

SD 500

6070

1200

1715

500 Kg/ Hr

15.5 M

SD 800

7650

1400

1715

800 Kg/ Hr

20.7 M

STANDARD EQUIPMENT

All Models

- 230 volts, 3-phase, 50Hz
- Other electrical characteristics available

Electric Models

Each features completely wired, side access control panel enclosing terminals for incoming power, temperature controllers, push buttons and pilot lights. Motor starter and heating element contactors electrically interlocked to shut off heaters if power to blower is interrupted and to permit operation of blower without heat for cooling. Incoloy sheathed tubular heating elements.

Gas Models

- 1,000 BTU natural gas at 6" water column pressure;
- Other gas characteristics available

Control panel as on electric models. Automatic preignition purge period and push button electric ignition contributes to ease of operation. Modulating gas burner is protected with electronic flame safety relay.

ADDITIONAL EQUIPMENT AVAILABLE

Exhaust Hood: with or without tubeaxial fan, to exhaust heat and fumes escaping open ends of heat zone..................EXH
Cooling Zone: installed over extended unload conveyor, with forced convection cooling.................................................CZ
Multiple Heat Zones: to provide temperature profile during processing, specify quantity and length of each zone..MHZ
SCR Belt Speed Control: in lieu of mechanical 1:2.5 ratio, provides 1:20 turn down ration...............................................SBS
Belt speed Indicator: used with SCR variable speed belt control............................................................................................BSI
