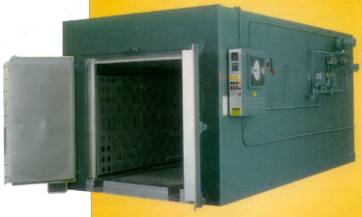

High Temperature Walk-In Ovens

Bulletin WI-520


HEAVY DUTY
ELECTRIC AND GAS
4500C, 5250C & 6500C
WALK-IN OVENS

For annealing, sintering, precipitation hardening, burn off or any other high temperature processing of large or numerous parts. Constructed with an isolated inner oven to eliminate heat transfer and leakage at seams commonly found in standard panel construction. Designed and constructed for long, hard, continuous use with the temperature uniformity required for consistent results at elevated temperatures.

STANDARD FEATURES

Controls

  • Digital, microprocessor based, thermocouple actuated, indicating temperature controller -Modulating burner on gas-fired ovens
  • Motor control push buttons, on-off heat switch.
  • Easy-to-see pilot lights

Safety Equipment -Electric Oven

  • Adjustable, thermocouple actuated, manual reset excess temperature controller.
  • Separate heating element control contactors
  • Recirculating blower airflow safety switch.

Safety Equipment - Gas Oven

  • Adjustable, thermocouple actuated, manual rest excess temperature controller.
  • Electronic flame safeguard protection
  • Powered forced exhauster for combustion venting
  • Exhauster air flow safety switch
  • Recirculating blower air flow safety switch
  • Purge timer
  • High gas pressure switch
  • Low gas pressure switch
  • Latch-type manual reset main gas valve
  • Testing device to test tight closure of main gas valve
  • Solenoid blocking valve up to 400,000 BTU/HR heat input; motorized backup valve and vent valve over 400,000 BTU/HR

Construction

  • Choice of air flow patterns
  • Adjustable patented opposed louvers on full coverage supply and return ductwork
  • Exceptionally heavy duty doors
  • Explosion venting latches
  • Doors equipped with expansion joints on inner face to guarantee uniform sealing at all temperatures.
  • Inner and outer doors gaskets; inner gasket seals directly against door plug; outer gaskets seals against front face of oven.
  • 3/8 steel plate oven front to guarantee rigid sealing surface at all temperatures.
  • Slip flashing at door openings to allow inner oven to expand without effecting outer oven or door sealing surface
  • Aluminized steel exterior with enamel finish
  • Brushed stainless steel exterior control panel face
  • 1 year limited warranty

Every oven fully assembled and individually factory tested

SPECIFICATIONS

Model

Work Space

Dimensions

(W x D x H)

Outside Dimensions

(W x D x H)

Max Temp

Blower

Insul-ation

Doors

Heat Input

Operating Characteristics

CFM

HP

KW

BTU/ Hr

Control Accuracy

Oven Uniformity

Rise Time

Electric

Gas

B1-450

48" x 48" x 72"

71" x 90" x 88"

4500C

4,200

3

7"

Double

60

400,000

+ 0.3%

+ 50C

60 min

45 min

B1-525

48" x 48" x 72"

75" x 100" x 93"

5250C

6,400

5

8"

Double

80

550,000

+ 0.3%

+ 60C

60 min

45 min

B1-650

48" x 48" x 72"

83" x 110" x 99"

6500C

10,000

10"

Double

120

880,000

+ 0.3%

+ 70C

70 min

40 min

B2-450

54" x 72" x 72"

77" x 144" x 88"

4500C

5,000

5

7"

Double

80

600,000

+ 0.3%

+ 50C

80 min

50 min

B2-525

54" x 72" x 72"

83"x 126" x 94"

5250C

7,800

5

8"

Double

100

880,000

+ 0.3%

+ 60C

80 min

50 min

B3-450

48" x 96" x 72"

87" x 148" x 91"

4500C

7,800

5

7"

Double

100

700,000

+ 0.3%

+ 50C

80 min

45 min

B3-525

60" x 96" x 72"

93" x 154" x 94"

5250C

10,000

7 ½

8"

Double

120

880,000

+ 0.3%

+ 60C

90 min

50 min

B4-450

72" x 120" x 72"

105" x 174" x 92"

4500C

12,500

10

7"

Double

120

800,000

+ 0.3%

+ 50C

90 min

50 min

B1H-450

48" x 48" x 72"

71" x 104" x 84"

4500C

5,000

5

7"

Double

60

400,000

+ 0..3%

+ 50C

60min

45min

B1H-525

48" x 48" x 72"

77" x 106" x 87"

5250C

7800

5

8"

Double

80

550,000

+ 0..3%

+ 60C

60min

45min

B1H-650

48" x 48" x 72"

91" x 110" x 90"

6500C

12,500

10

10"

Double

120

880,000

+ 0..3%

+ 70C

70min

40min

B2H-450

54" x 72" x 72"

81" x 128" x 84"

4500C

7,800

5

7"

Double

80

600,000

+ 0..3%

+ 50C

80min

50min

B2H-525

54" x 72" x 72"

87" x 130" x 87"

5250C

10,000

7 ½

8"

Double

100

880,000

+ 0..3%

+ 60C

80min

50min

B3H-450

60" x 96" x 72"

89" x 152" x 84"

4500C

10,000

7 ½

7"

Double

100

700,000

+ 0..3%

+ 50C

80min

45min

B3H-525

60" x 96" x 72"

97" x 154" x 87"

5250C

12,500

10

8"

Double

120

880,000

+ 0..3%

+ 60C

90min

50min

B4H-450

72" x 120" x 72"

115" x 176" x 84"

4500C

17,500

15

7"

Double

120

800,000

+ 0..3%

+ 50C

90min

50min

STANDARD EQUIPMENT

230 volts, 3 - phase, 50 Hz
Other electrical characteristics available

All Models Exclusive construction is far superior to commonly used panel construction Consists of an isolated inner oven completely surrounded by insulation to eliminate heat transfer from through metal and hot air leakage at panel seams. Insulated floor standard. Trilite Green enamel painted aluminized steel exterior.

Electric Models Each features completely wired, side access control panel enclosing terminals for incoming power temperature controllers, push buttons and heating element contactors electrically interlocked to shut off heat for cooling. Incoloy sheathed tubular heating elements on all models. The 6500C models have a heat chamber high limit control.

Gas Models

1,000 BTU natural gas at 6" water column pressure 1" NPT inlet Other gas characteristics available
Control panel as detailed above and safety devices as listed on the front of this bulletin. A 325 CFM powered forced exhauster in included up to 800,000 BTU/HR, at 880,000 BTU/HR a 650 CFM exhauster is included. Both exhausters have 6" outlets. Automatic preignition purge period and push button electric ignition contributes to ease of operation. Modulating gas burner is protected with electronic flame safety relay.

B1, B2, B3, B4 SERIES

Combination Air Flow

Combination airflow for random shapes and sizes or for large bulky objects where heated air can move upward around and through the load.

B1H, B2H, B3H, B4H SERIES

Horizontal Air Flow

Horizontal airflow for applications where heated air must move sideways to pass through a load such as trays or flat sheets.

4500C Models

16 gauge aluminized steel interior throughout. 7" of 675oC10-lbs./cf. density industrial rockwool insulation throughout walls, doors and ceiling. 4" thick insulated floor with 1/8" steel plate cover

5250C Models

16 gauge aluminized steelwork space interior with 16 gauge 304 stainless steel heat chamber interior. Stainless steel recirculating blower. 8" of 6500C 10 lbs./cf. density industrial rockwool insulation throughout walls, doors and ceiling of work space. Oven heat chamber insulated with 2" of 19000C block surrounded by 6" of 6500C 10 lbs./cf. density industrial rockwool insulation. 6" thick insulated floor with ¼" steel plate cover.

650oC Models

16 gauge 304 stainless steel interior throughout. Stainless steel recirculating blower. 10" of insulation" consisting of 2" of 1050oC block, surrounded by 8" of 6500C 10 lbs./cf. density industrial rockwool insulation throughout walls, doors and ceiling. 7" thick insulated floor with ¼" stainless steel plate cover.
