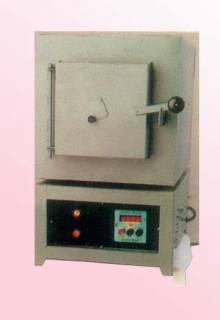

Muffle Furnace

Bulletin MA - 920

FEATURES

  • Separated heating & controlling chamber.
  • No brick lining
  • Asbestos - free construction.
  • Power saving up to 60% due to quick heating.
  • Muffle furnace up to 12000C.
  • Choice control systems.
  • A range of popular sizes.

SAKAV Furnaces are excellent in performance over a long period of time & are suitable for wide range of applications. Muffle furnaces give trouble free performance at substantially high temperature i.e. 1000 - 12000C.

GENERAL SPECIFICATION

1) FURNACE CASE: For muffle & crucible furnaces case is fabricated from CRCA sheet of heavy gauge in compact size. Finish painted with heat resistant hammerton paint.

2) HEATING ELEMENT & INSULATION: Best quality, well known, High-grade resistance wire KANTHAL is used for fabricating the heating elements of these furnaces. It is helically wound externally on to a ceramic muffle to give optimum temperature uniformity & sealed with special refractory. High quality, low thermal mass material ceramic fibers (INDWOOL / CERWOOL / MINERALWOOL) are chosen to give maximum thermal efficiency.

3) OPTINAL AT EXTRA COST:
A) Blind temperature controller.
B) Digital temperature controller.
C) Digital temperature controller with audio alarm that sounds when a set point is reached & also protects your incubating samples from temperature fluctuation.
D) Microprocessor based profile programmer: Extremely precise control of temperature is achieved. Different cycles of TIME & TEMPERATURE can be obtained. A product of state of the art technology very useful in research work.

Muffle Furnace (10000c)

Muffle Size

Rating

9" x 4" x 4"

1.6 kW

10" x 5" x 5"

2.0 kW

12" x 6" x 6"

3.5 kW

18" x 9" x 9"

6.5 kW

High Temperature Furnace (11500c To 12000c)

Muffle Size

Rating

9" x 4" x 4"

2.0 kW

10" x 5" x 5"

2.5 kW

12" x 6" x 6"

3.5 kW

18" x 9" x 9"

6.5 kW

Programmable Muffle Furnace (11500c To 12000c)

Muffle Size in cms

Max. Heating Rate

23 x 10 x 10

150C / Min

30 x 15 x 15

120C / Min

45 x 23 x 23

100C / Min
